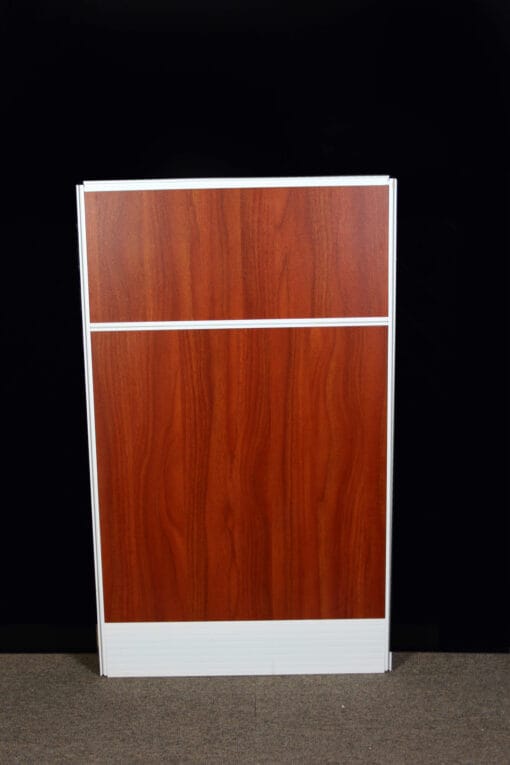

Fully Laminated Wrapped Panel- 2ft-51″H-Cubicle Panel-Privacy Screen-Room Divider
$235.00
CALL US AT 424.388.8142 FOR DELIVERY TIME FRAME
Data Sheet For : UD2/S/2451 FINAL
Out of stock
Data Sheet For : UD2/S/2451 FINAL
Brand: UD2 / Solid Panel
SIZE & WEIGHT: Laminated Wrapped Cubicle
| Panel Size : W x D x H Imperial Dimensions | |
| Panel Size : W x D x H Metric Dimension | |
| Aluminum Color | Powder Coated with WHITE color |
| Alum Profiles Weight / Volume | kg/1.3 |
| MDF laminated Color | Maple| Grey |light mahogany | |
| PANEL NOMINAL WEIGHT (WEIGHT WITH NO PACKING) | |
| PANEL GROSS WEIGHT (WEIGHT WITH PACKING) |
PANEL COMPONENTS & PACKING:
| S/N | CODE | Description | QTY | SIZE | TOTAL |
| 1 | CW/K4900 | TOP PART/SIDE PART SEAL | 1 | 23” | 23 |
| 2 | CW/K4901 | TOP POLE | 1 | 23” | 23 |
| 3 | CW/4903 | EDGE | 2 | 48” | 96 |
| 4 | CW/K4905 | BIG MIDDLE POLE/INTERMEDIATE | 1 | 23” | 23 |
| 5 | CW/K4911 | TRAXK COVER/WIRING BOX FOR EASY FIXTURTE | 2 | 23” | 46 |
| 6 | MW0001 | INTERMEDIATE(7445) | 1 | 23” | 23 |
| 7 | CW/CM3314 | PLASTIC TRACK | 2 | 1.5” | 3 |
| 8 | CW/TY16 | ADJUSTABLE LEG | 2 | 2 | |
| 9 | W0012 | 5 MM MDF LAMINATED | 2 | 23”X43” | 1978 |
| 10 | MW1001 | Small MDF 18 mm for fixing the 5mm MDF | 6 | 18”X1” | 108 |
| 11 | MW1004 | SCREWS 6X1” | 10 | 6X1” | 10 |
| 12 | MW0077 | CORNER CARTOON FOR 3CM | 4 | 3CM | 4 |
| 13 | MW0048 | SHRINK NYLON |
Description:
Short description: Multi-function Laminated Wrapped Cubicle
Long description:
1- Full solid panel.
2- The Laminated Wrapped Cubicle Alum thickness varies from 1.0 to 1.2 mm depending on the profile code part.
3-The panels are covered with modified upholstery Fabric where it provides diversification of the sound signals (where it is perfect for the call centers and open areas). The 5MM MDF is laminated with wood grain shapes / fabric can be installed instead of the laminated MDF.
4- The bottom part has a track (cable management raceway), for electrical wiring, and punched in 2 locations for the sockets as per the American standard sockets / or the British standard sockets.
5-The unit is of a double skin system where fabric can be dismantled from each sides independently and can be replaced, without affecting the other side, all you need to dismantle the fabric part is a spatula.
6- The Laminated Wrapped Cubicle products are guaranteed for 3 years against manufacturing defect.
| Weight | 17 lbs |
|---|---|
| VOLUME (FT3) | 1 |
| TRIM COLOR | RAL9016 WHITE |
| Color Of Fabric / Melamine | Slated |
